Map Ratio

Johnny and Mary read the following question:

“On a map of scale 1 : 20 000 the area of a forest is 50 cm². On another map the area of the forest is 8 cm². Find the scale of the second map.”

(Extended Mathematics for IGCSE. David Rayner. Oxford University Press ISBN 978-0-19-913874-6 )

Mary starts with the linear map scale. She knows that 1 : 20 000 is a 'unitless' ratio. It could be 1 inch to 20 000 inches, 1 cm to 20 000 cm or possibly 1 'little green men' Martian mile to 20 000 'little green men' Martian miles. The reason the ratio is unitless is that a : b can also be written as (a cm/b cm) and then 'cm' cancels. Nevertheless, restoring the units and converting within the metric system makes the problem easier for Mary to visualise.

1 cm : 20 000 cm

1 cm : 200 m, as there are 100 cm in a metre

1 cm : 0.2 km, as there are 1000 m in a km. Of course, Mary could have converted directly from cm to km, using 10 ^ (-2 - 3) = 10^(-5) as her conversion factor.

Now Mary imagines a forest with a rather irregular perimeter.

(Google Maps: Montreal, QC, Canada)

She remembers placing a leaf on a square grid in Year 6 to estimate its area.

http://www.experiland.com/html_projects/LS/10121301_LS_Trees%20act%20as%20large%20solar%20panels%20-%20Calculate%20the%20area%20of%20leaves.htm

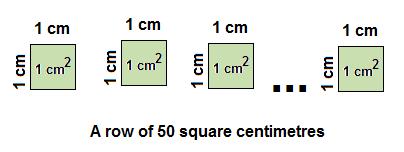

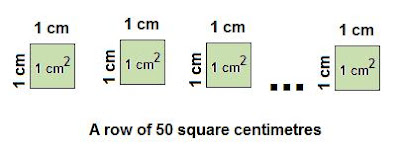

Consequently, she thinks to take a pair of scissors and cut the forest up in little green squares. Each square will be exactly 1 cm long and exactly 1 cm wide. She imagines cutting out 50 such squares, some of which might have to be glued together from various odds and ends.

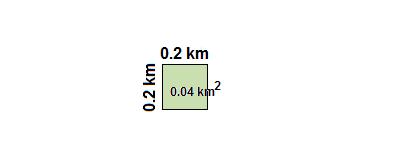

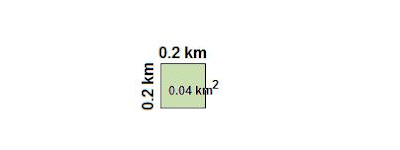

Each square cm represents 0.04 km²

Thus 1cm² to 0.04 km² is the areal ratio of the map.

Algebraically, Mary inputs a ratio into a function machine and gets out a fraction: 1 cm : 0. 2 km → (1cm/0.2 km)

Her next function machine is a squaring machine: (1cm/0.2km) → (1cm/0.2km)²

Her next function machine expands the brackets (1cm/0.2km)²→ 1cm²/ 0.04 km²

Her final function machine converts the fraction back to a ratio: 1cm ²/ 0.04 km² → 1 cm² : 0.04 km^2.

Please note the arrows. The inputs are not equal to the outputs, so Mary knows it would be wrong to jot down: 1cm/0.2 km = (1cm/0.2km)².

Since 1 cm² on the map represents 0.04 km² on the ground, 50 cm² will represent 50 times 0.04 = 2 km² on the ground.

The new map scale uses 8 cm² to represent the same 2 km² on the ground. Consequently it uses 1 cm² to represent 2/8 km² = 0.25 km². The areal scale of the new map is 1 cm² to 0.25 km². Mary knows she needs to take square roots of both sides to get the linear scale. The square root of 1 cm² is just 1 cm. The square root of 0.25 km² is 0.5 km. (While the square root of a counting number is smaller that the original number, it is not the case for fractions. You should recall that the square root of a fraction is larger that the number with which you begin.) Mary now knows the linear ratio of the new map is 1 cm to 0.5 km, i.e.,

1 cm : 500 m

1 cm : 50 000 cm

1 : 50 000

While Mary has been thinking of leaves, pretending to cut up the map and using function machines to convert between linear and areal scales and vice versa, Johnny has been mostly staring out the window and muttering incantations. Suddenly he begins to scribble furiously so that he and Mary annouce -virtually simultaneously- to the teacher, “The ratio for the new map is 1 to 50 000.”

As the class wants to know what Johnny was thinking, the teacher calls him to the white board where he writes:

The new areal map scale, A' to the original areal map scale, A is 8 : 50 or equivalently 16 : 100.

But A = L² by definition of area and similarly A' = (L')². I will make these substitutions.

(L')² : L² is 16 : 100

However I want L' and L, so I will square root everything.

Sqrt L'² to sq rt L² is as sq rt 16 to sq rt 100

Thus L' : L is 4 : 10

Converting the above line to fractional form, L'/L = 4/10 or equivalently L' = 0.4 L.

Given L is 1 : 20 000, consequently L' is 0.4 : 20 000 which is the same as 1 : 50 000. QED.

Conclusion:

While Mary does use algebraic ideas (particulary, function machines) it seems fair to say that her thinking is rather more 'concrete' (or dare I say, grounded) than Johnny's. Vice versa, Johnny's solution is much more abstract than Mary's. But which is better? Certainly, Mary's solution is more accessable to the average student. By contrast, most students appear to believe Johnny has pulled a rabbit from his magician's hat.
